Full Servo Robots

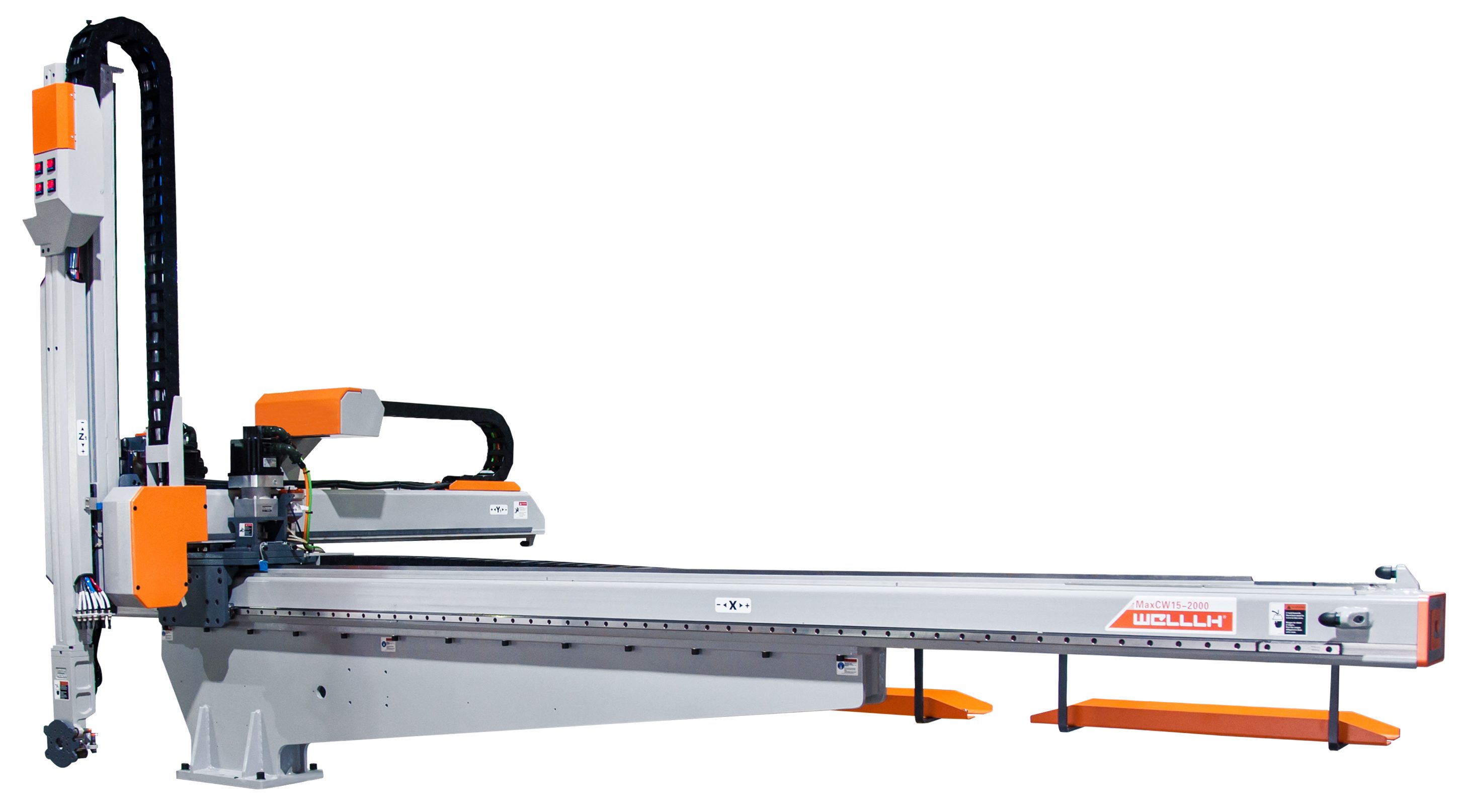

MaxAW05-1100

Our MaxA and MaxAW series is designed for smaller tonnage molding machines 30-300 tons. The MaxA(W) series are fully servo driven and are available with a single-stage or telescoping vertical arm.

Loaded with standard features such as 2 Vacuum Circuits, 2 Gripper Circuits, 20 Spare Input/Output signals, Pneumatic “Flip” C-Axis Standard, Advanced Vibration Dampening, Supervisory Safety Circuit (STO) and More. If you have any questions about any of these features or if need help sizing a robot give us a call.


Key Specifications

  • IMM Range (tons):
    200-300
  • Stroke Vertical (mm):
    1100
  • Stroke Crosswise (mm)
  • Stroke Angle
  • Air Consumption:
    1
  • Drive System:
    AC Servo Motor
  • Gripper Angle:
    90
  • Max Current (amps):
    8.9
  • Max Load (kg):
    5
  • Power Consumption (kva)
  • Power Supply:
    480 VAC 3 Phase 60Hz
  • Stroke Single Arm Strip (mm):
    1200
  • Stroke Traverse (mm):
    1800
  • Type:
    Telescoping
  • Weight (kg):
    370
  • Working Air Pressure (kg/cm):
    5~8

Standard Features

  • Riser/Adapter Plate
  • 2 Vacuum Circuits
  • 2 Gripper Circuits
  • 20 Spare Input/Output signals
  • Pneumatic “Flip” C-Axis
  • 3-Axis Synchronized Movement
  • Absolute Encoders (faster robot programming)
  • Advanced Vibration Dampening
  • Supervisory Safety Circuit (STO)
  • Compact Floor Mounted Electrical Cabinet for Easy Maintenance
  • Fully unlocked robot pendant
  • Large Mold Storage Capacity
  • Programs Stored in Cabinet, Not Pendant (data not lost if pendant damaged)
  • 26 ft (8 m) Long Pendant Cable for Maneuverability While Programming
  • Advanced Mold & Vertical Arm Protection
  • Quick Change Universal Mounting Plate on Vertical Arm
  • Euromap Adapter for Both 12 & 67 Molding Machines
  • Telescoping Vertical Arm for Low Height Clearance

Options

  • Additional Vacuum Circuit with Detection*
  • Additional Gripper Circuit*
  • Expanded I/O*
  • Pneumatic Wrist Rotate*
  • Extended Traverse
  • Beam Mounted Electrical Cabinet
  • Secondary Vertical Arm for 3-Plate Molds
  • In-Line Take Out (Traverse Over Clamp)
  • Extended Pendant Cable
  • Custom End-Of-Arm-Tooling
  • Downstream Equipment (Guarding, Conveyors, Labeling, Packaging, etc.)

Controls

  • Highly responsive touch screen
  • Simple & intuitive programming
  • Seamless integration with various molding machine brands
  • Fully unlocked end-user program access
  • Create any unique motion sequence at the pendant without the need for factory assistance, special programming or off-line software
  • Large storage space
  • Simple uploading and downloading of programs with a standard USB port
  • Lightweight, easy to operate handheld controller
  • Bright full color split screen controller shows line by line programs on the left and programming information on the right
  • Free edit mode

Applications

  • Small and medium tonnage applications
  • Insert applications
  • Medical (clean room)
  • Basic downstream processes (trimming, labeling, stacking, etc.)

Controls

  • Highly responsive touch screen
  • Simple & intuitive programming
  • Seamless integration with various molding machine brands
  • Fully unlocked end-user program access
  • Create any unique motion sequence at the pendant without the need for factory assistance, special programming or off-line software
  • Large storage space
  • Simple uploading and downloading of programs with a standard USB port
  • Lightweight, easy to operate handheld controller
  • Bright full color split screen controller shows line by line programs on the left and programming information on the right
  • Free edit mode
