Full Servo Robots

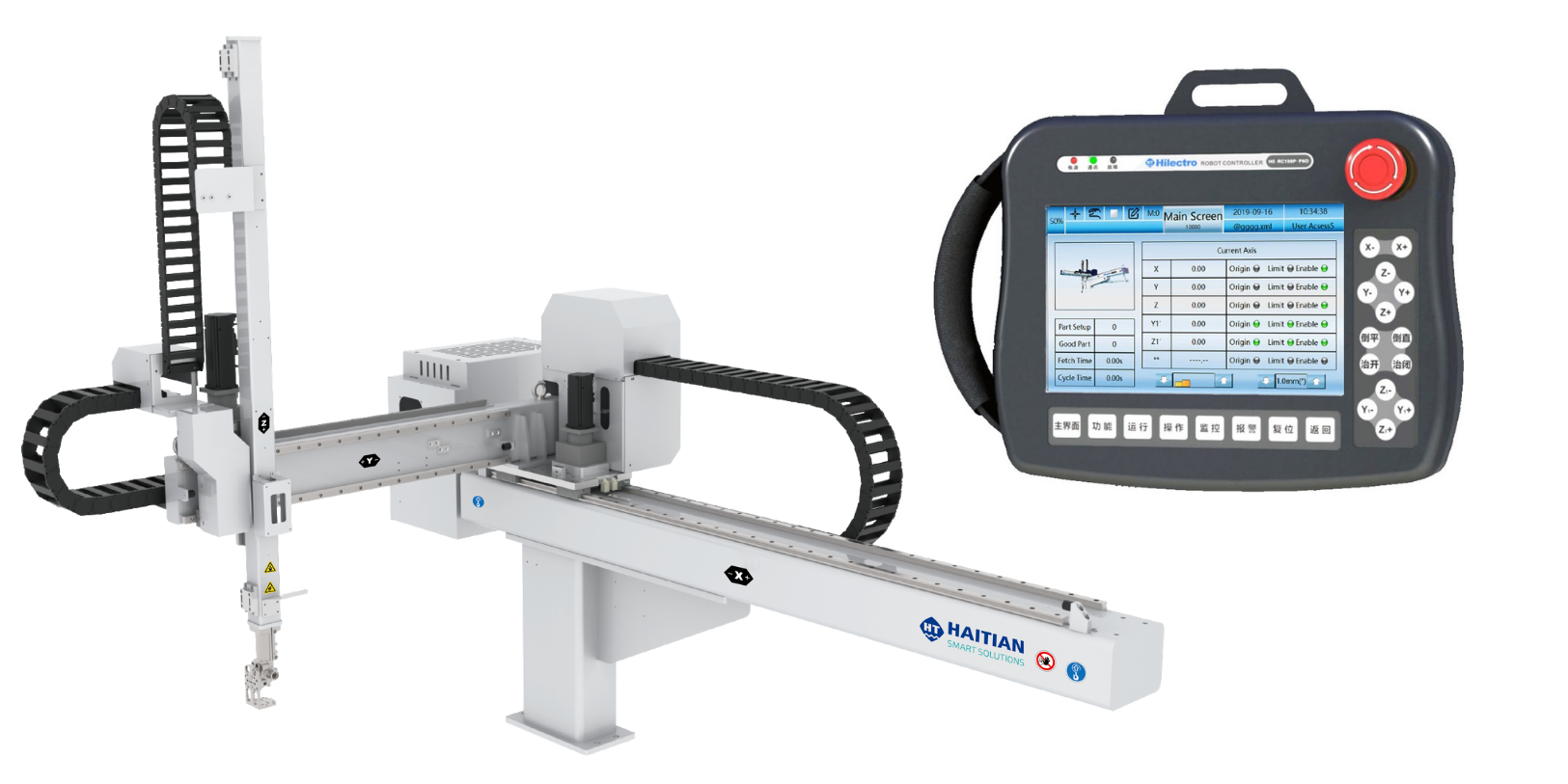

V800IS
Our Haitian V IS series is designed for small-to-mid tonnage molding machines. The V IS series is fully servo driven and built on a single-stage vertical arm for fast and precise part handling.
Loaded with standard features such as 2 Vacuum Circuits, 2 Gripper Circuits, 18 Input / 14 Output Signals, Pneumatic "Flip" C-Axis Standard, 3-Axis Synchronized Movement, Advanced Vibration Dampening, and More. If you have any questions about any of these features or if need help sizing a robot, give us a call.
Features
Key Specifications
- IMM Range (tons):60 - 200
- Stroke Vertical (mm):800
- Stroke Crosswise (mm)
- Stroke Angle
- Air Consumption:5.2
- Drive System:AC Servo Motor
- Gripper Angle:90
- Max Current (amps):-
- Max Load (kg):8
- Power Consumption (kva)
- Power Supply:460 VAC 3 Phase 60Hz
- Stroke Single Arm Strip (mm):900
- Stroke Traverse (mm):1400
- Type:Single Stage
- Weight (kg):360
- Working Air Pressure (kg/cm):73 psi
Standard Features
- Full Servo Multi-Axis Motion Control
- 7" Color Touchscreen Controller
- High-Speed, High-Precision Operation
- Advanced Mold & Vertical Arm Protection
- 3-Axis Synchronized Movement
- Advanced Vibration Dampening
- Quick-Change Universal EOAT Mounting Plate
- Dual Vacuum Circuits
- Dual Gripper Circuits
- Flexible Part Discharge Orientation
- Fully Unlocked Robot Programming Pendant
- Large Mold Memory Capacity
- Spare Digital Inputs & Outputs for Custom Automation
- Euromap 67 Injection Molding Machine Interface
- Ethernet Communication Support
- Rugged Industrial Construction
- Easy Installation & Seamless Machine Integration
- Designed for High Reliability and Low Maintenance
Options
Controls
- 7" Color Touchscreen HMI
- Intuitive Programming Interface
- Multi-Axis Servo Motion Control
- User-Programmable Operation
- Mold Memory Storage
- Euromap 67 Interface
- Digital I/O Expansion
- Alarm Diagnostics & Monitoring
Applications
- art Removal
- Pick & Place
- Insert Loading
- Part Stacking
- Conveyor Transfer
- In-Mold Labeling (IML)
- Assembly Automation
- Packaging Automation
- Quality Inspection
- High-Speed Injection Molding
Controls
- 7" Color Touchscreen HMI
- Intuitive Programming Interface
- Multi-Axis Servo Motion Control
- User-Programmable Operation
- Mold Memory Storage
- Euromap 67 Interface
- Digital I/O Expansion
- Alarm Diagnostics & Monitoring
Similar Models
FAQ
- Is this the right robot for me ?+
If you have ANY questions about the best way to automate your molding process, PLEASE do not hesitate to give us a call. We have application engineers ready to help you select the best automation based on your needs.
- Do you provide application engineering? (more than just the robot itself)+
YES! Everything from a simple pick and place operation to a complex multi-machine cell application. We can provide everything you need from the End-of-Arm-Tooling all the way to downstream packaging.
- Do you offer training ?+
YES! Along with our standard on-site training when we start up the robot, ARI also offers classroom and scheduled on-site classes.
- Do I need to order a riser/mounting plate with my robot?+
NO! We include your machine specific riser/mounting plate with your robot purchase. Our engineers ensure your riser fits correctly with the robot mounting location on the stationary platen.
